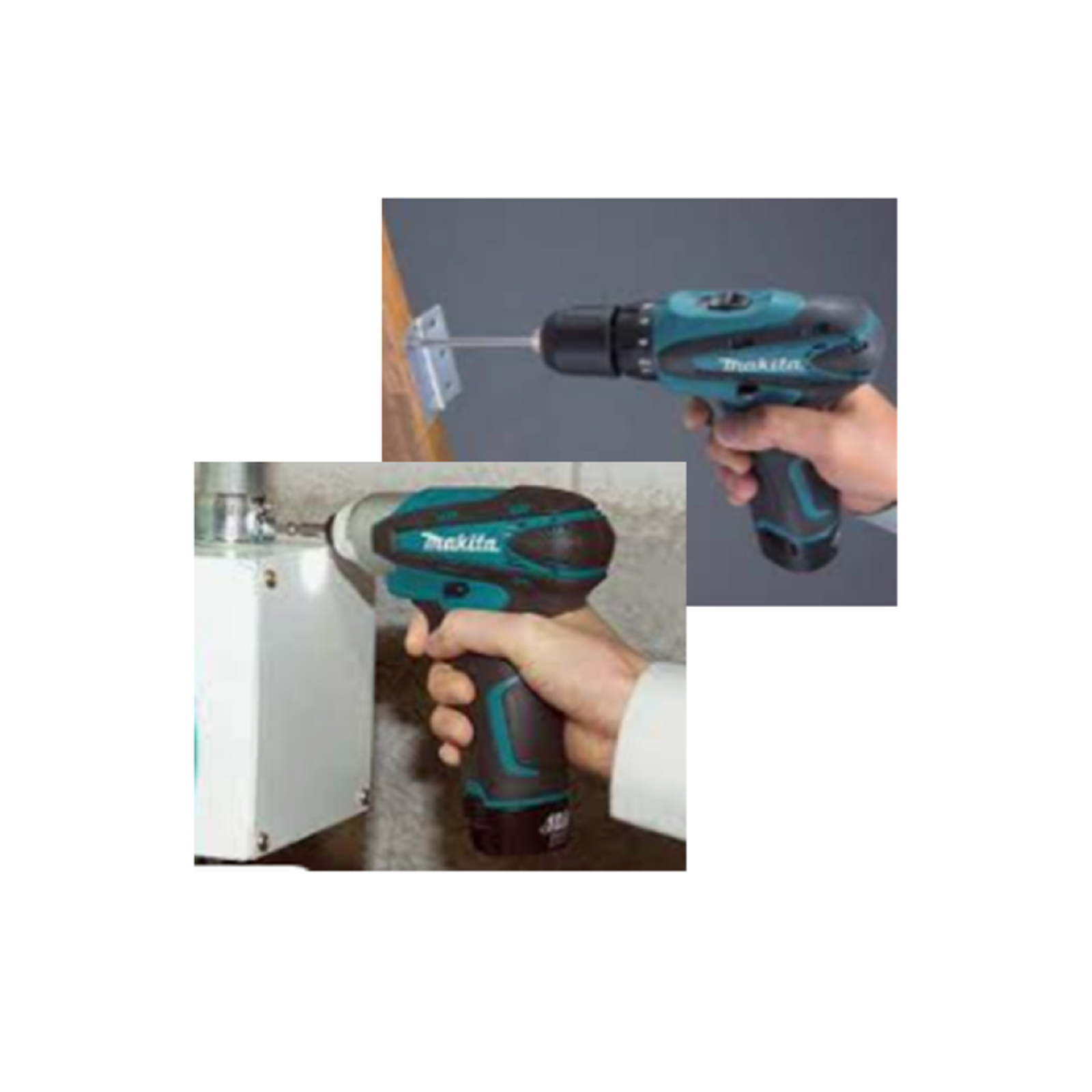

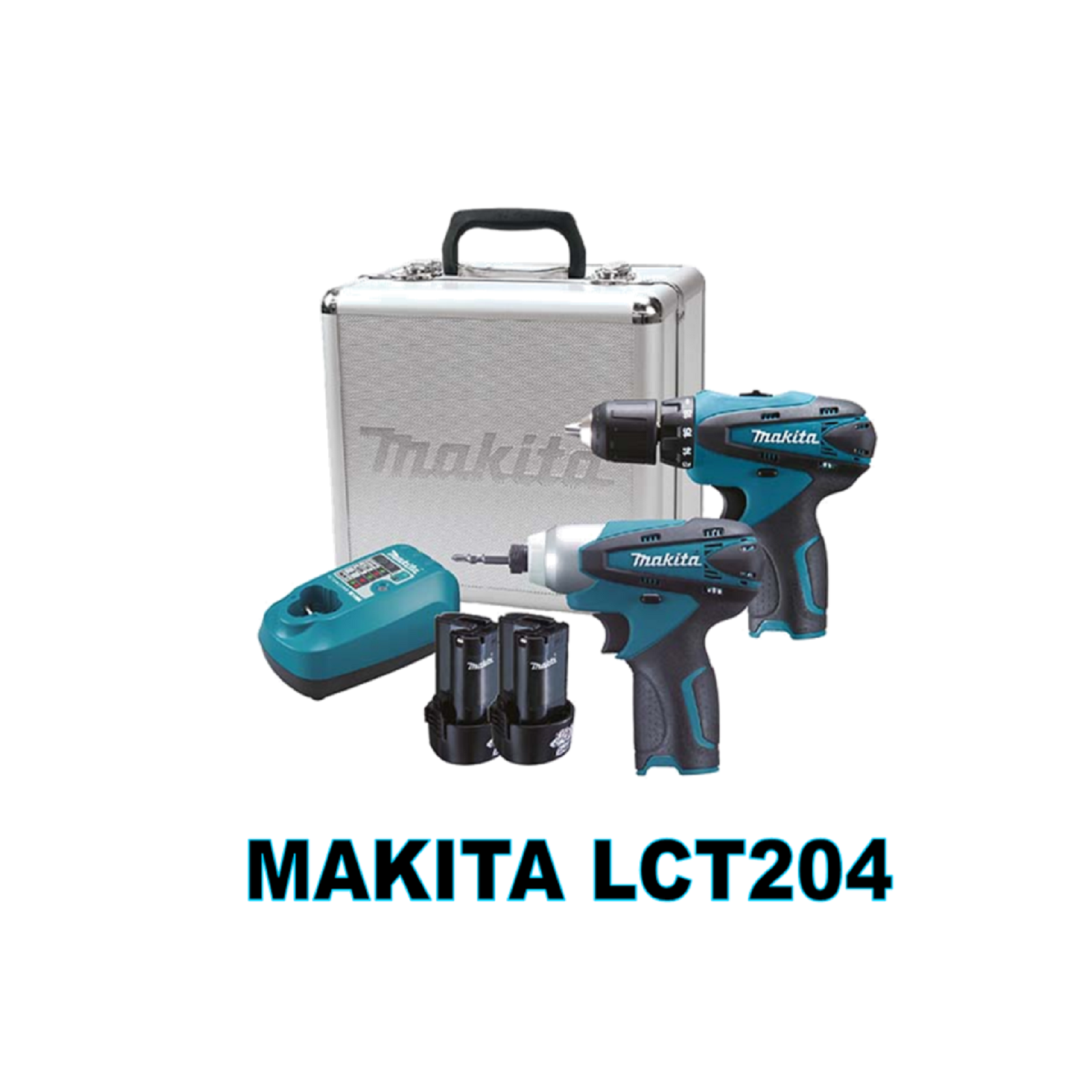

MAKITA LCT204 Cordless Combo Kit. DF330DZ & TD090DZ. Casing.

Data sheet

DF330D capacity wood

21mm (3/16")

DF330D no load speed

High 0-1300rpm Low 0-350rpm

DF330D maximum fastening torque

hard/soft 24/14Nm

DF330D dimension (L x W x H)

189 x 53 x 183mm

DF330D net weight

0.89kg (2lbs)

TD090D machine screw

M4-M8 (5/32"-5/16")

TD090D standard bolt

M5-M12 (3/16"-1/2")

TD090D high tensile bolt

M5-M10 (3/16"-3/8")

TD090D coarse thread length

22-90mm (7/8"-3-1/2")

TD090D impacts per minute

0-3000ipm

TD090D no load speed

0-2400rpm

TD090D maximum fastening torque

90Nm (800in lbs)

TD090D dimension (L x W x H)

155 x 54 x 178mm (6-1/8" x 2-1/8" x 7")

TD090D net weight (including battery)

0.92kg (2lbs)

DF330D capacity steel

10mm (3/8")
