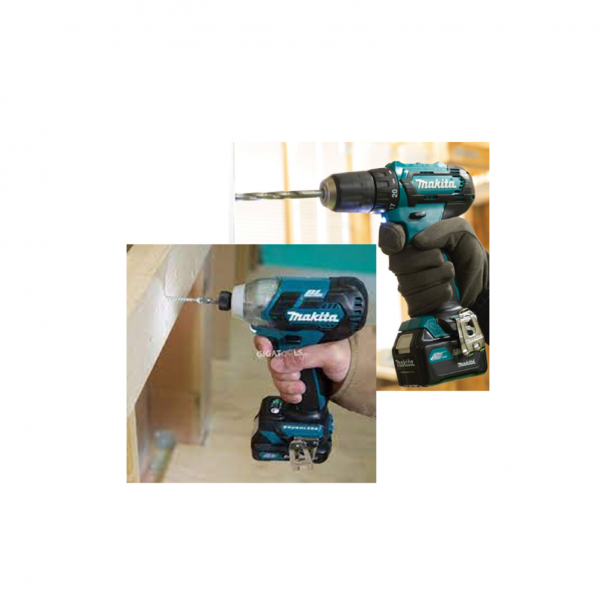

MAKITA CLX224SAX1 Cordless Combo Kit. DF333DZ & TD090DZ. Casing.

Data sheet

DF333DZ capacity wood

21mm (3/16")

DF333DZ chuck capacity

0.8-10mm (1/32"-3/8")

DF333DZ no load speed

High 0-1700rpm Low 0-450rpm

DF333DZ maximum fastening torque

hard/soft 30/14Nm (270/130in lbs)

DF333DZ maximum lock torque

28Nm (250in lbs)

DF333DZ maximum output

170W

DF333DZ clutch torque setting

0.5-3.5Nm (4-30 in lbs)

DF333DZ dimension (L x W x H)

179 x 66 x 212mm

DF333DZ net weight

1.1-1.2kg

TD090DZ machine screw

M4-M8 (5/32"-5/16")

TD090DZ standard bolt

M5-M12 (3/16"-1/2")

TD090DZ high tensile bolt

M5-M10 (3/16"-3/8")

TD090DZ coarse thread length

22-90mm (7/8"-3-1/2")

TD090DZ impacts per minute

0-3000ipm

TD090DZ no load speed

0-2400rpm

TD090DZ maximum fastening torque

90Nm (800in lbs)

TD090DZ dimension (L x W x H)

155 x 54 x 178mm (6-1/8" x 2-1/8" x 7")

TD090DZ net weight (including battery)

0.92kg (2lbs)

DF333DZ capacity steel

10mm (3/8")
